PTP - Self-Clinching Studs

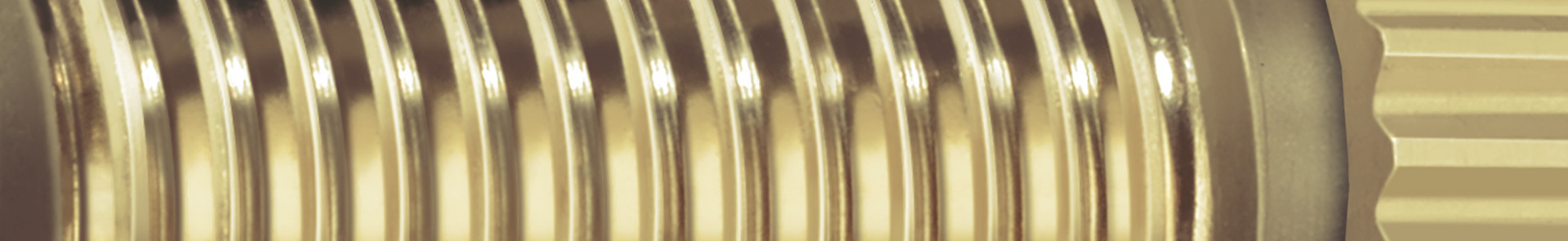

Self-Clinching Studs

PTP produces clinched Studs

PTP now produces M63540/2 & 3 series of self-clinching studs!

  • M63540/2
  • NASM63450/2
  • NASM63540/3
  • Studs are supplied in AISI 4130 alloy steel and CRES-303 materials.
  • AISI 4130 – Finish is cadmium plate per AMS-QQ-P-416.
  • CRES-303 – Finish is cleaned, descaled and passivated in accordance with ASTM A380.
  • Size range is thread size .1120-48 thru .2500-20 and lengths from .375 thru 3.00.
  • All PTP Products are DFARS compliant and meet or exceed
    NASM standards.
  • Military Stepped Studs:
  • MS9827
  • MS9828
  • MS9829
  • MS9830
  • MS9831
  • MS9832
  • MS9834
PTP produces Militray Stepped Studs
  • Studs are supplied in steel – AMS 6320, AMS6322 or AMS 6327
  • Cadmium plated AMS 2400
  • Thread size 0.250-20 thru 0.5625-12 UNJS; 0.190-32 thru 0.500-20 UNJF
  • Stud lengths from 1.000 thru 5.875

Call PTP today to get a quote on your next self-clinching or stepped stud requirement!

PTP will soon be certified to manufacture HS4773-equivalent parts for Boeing. Details soon!
